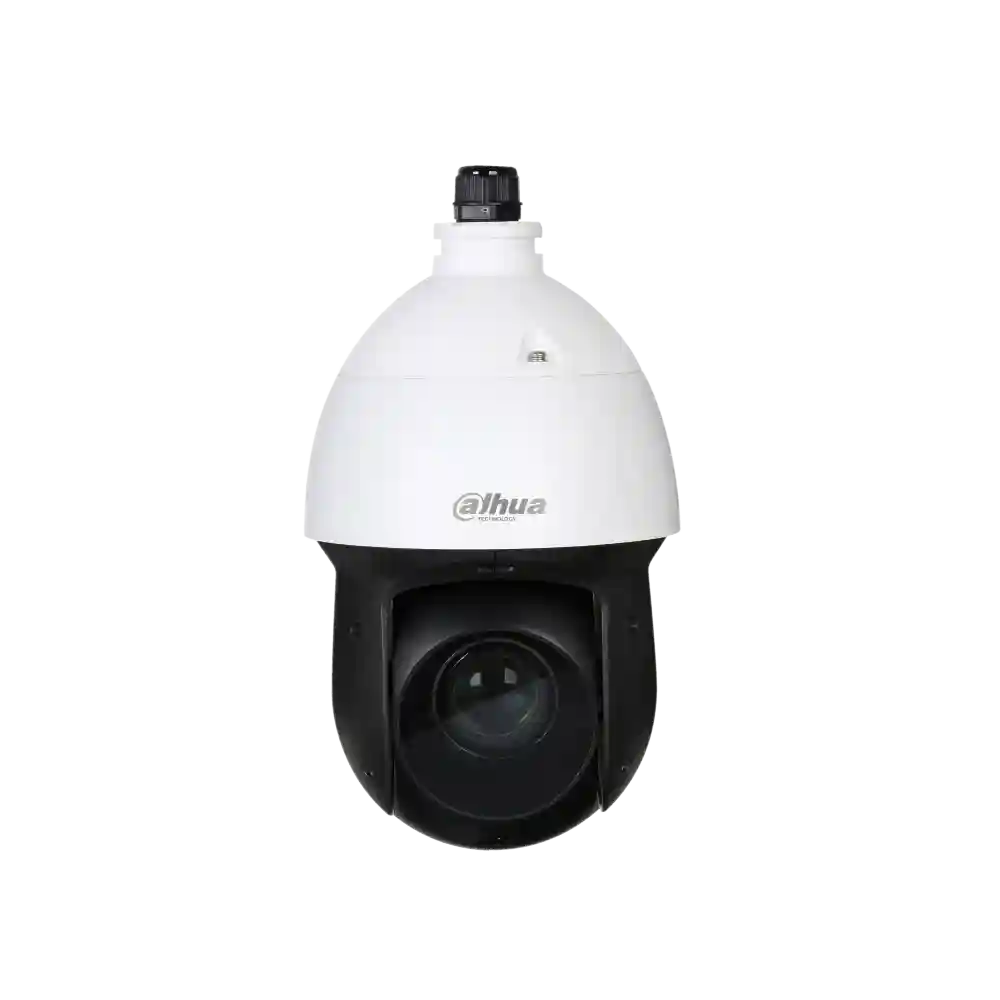

SD59230I-HC

2MP 30x Starlight IR PTZ HDCVI Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS

> Powerful 30x optical zoom

> Starlight technology
> 120dB true WDR, 3D DNR
> Max. 25/30fps@1080P, 25/30/50/60fps@720P
> IR distance up to 150m
> IP66



توضیحات

Camera
Image Sensor1/2.8” STARVIS™ CMOS
Effective Pixels1920(H) x 1080(V), 2 Megapixels
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/3s~1/30,000s
NTSC: 1/4s~1/30,000s
Minimum IlluminationColor: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N RatioMore than 55dB
IR DistanceDistance up to 150m (492ft)
IR On/Off ControlAuto/Manual
IR LEDs4
Lens
Focal Length4.5mm~135mm
Max. ApertureF1.6 ~ F5.0
Angle of ViewH: 67.8° ~ 2.4°
Optical Zoom30x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
1862m(6109ft)744m(2441ft)372m(1220ft)186m(610ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset SpeedPan: 400° /s; Tilt: 300° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Video
Resolution1080P(1920×1080)/720P(1280×720)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output1-channel BNC high definition video output/ CVBS standard definition video output (switchable)
Day/NightAuto(ICR) / Color / B/W
OSD MenuSupport
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto,ATW,Indoor,Outdoor,Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas
Certifications
CertificationsCE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface
Video Interface1
Audio Interface1 channel in
RS4851
Alarm I/O2/1
Electrical
Power SupplyAC24V/3A(±10%)
Power Consumption13W,23W (IR on)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress ProtectionIP66
Vandal ResistanceN/A
Construction
CasingMetal
DimensionsΦ186.0(mm) x 309(mm)
Net Weight3.5kg(7.72lb)
Gross Weight6.8kg(14.99lb)
